Spectrum Carbon Solutions
End-to-end activated carbon programs, from first-pass application consulting through media changeout, reactivation and compliant disposal.
Spectrum Carbon Solutions
Spectrum's Carbon Solutions division delivers end-to-end activated carbon programs for liquids and vapors — from first pass application consulting through media changeout, reactivation, and compliant disposal.
Whether you need a 200 lb polishing pot for trace organics or a 20,000 lb trailer engineered to strip PFAS from flows up to 1,200 gpm, our people size, supply, and service the entire system so you hit treatment targets with the lowest total cost of ownership.
Figures as published by Spectrum Water.
Carbon Services
Spectrum's seasoned engineers and chemists keep your water infrastructure running at peak performance — from temporary bypasses to advanced polishing.
Spectrum’s field crews mobilize with specialty lifts, respirator trained technicians, and confined space protocols to load, place, and remove carbon safely — liquid or vapor phase, 200 lb. up to full 20,000 lb. ASME vessels.
The change-out is done by the same company that sized the bed, so nobody is arguing about whose number was wrong.
Spent carbon is routed to our partner rotary kiln facilities for high temperature steam reactivation (meets ASTM activity specs), then returned as cost effective, recycled media — reducing waste volumes by up to 90%.
Waste volume drops by up to 90% and replacement cost by roughly 40%.

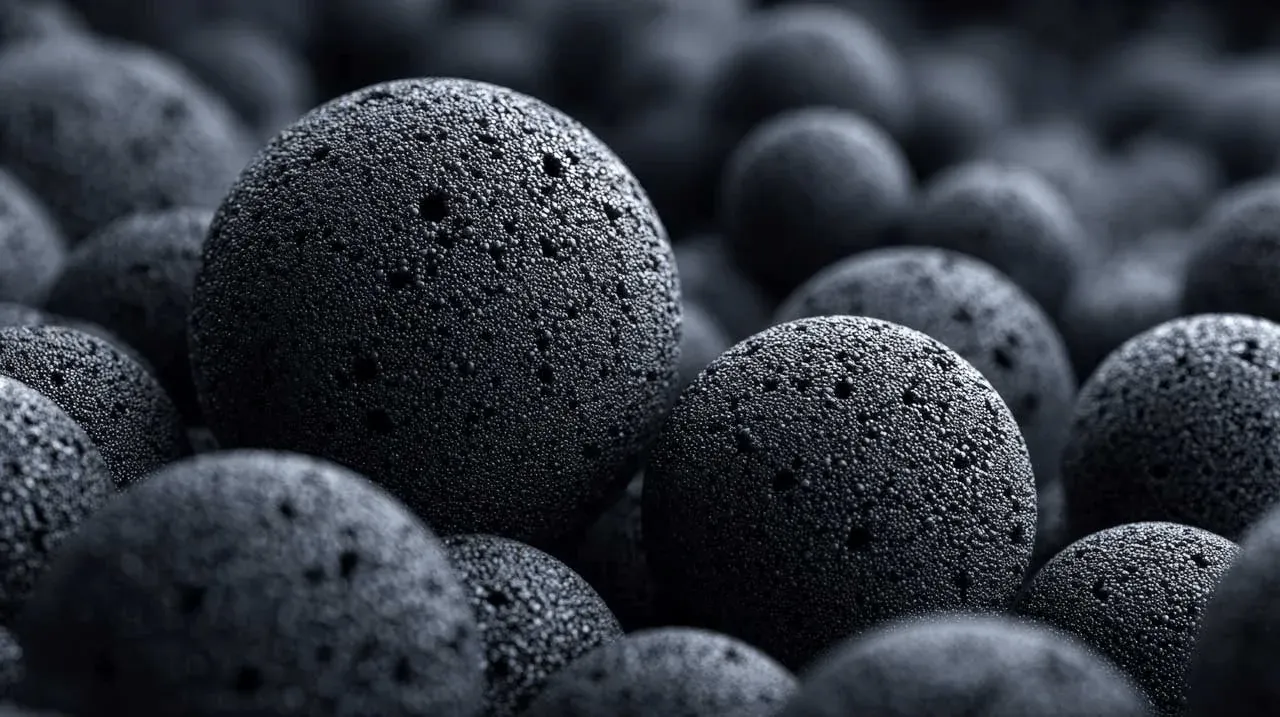

Coal, coconut, or wood-based GAC and pellet grades matched to adsorption rate, iodine number, and bulk density requirements. Specialty grades include acid washed carbon for low pH streams and catalytic carbon for chloramine removal.
The grade is chosen against your isotherm rather than against what is in stock.
Pre-engineered “ready to run” skid packages: dual 2,000 lb liquid phase vessels; twin 5,000 cfm vapor adsorbers for VOC/H₂S capture. Both arrive wet tested, with media and all hoses included.
Rapid deployment without a piping scope, because the connections are already made.
Our Lake Charles facility is a permitted RCRA 10-day storage site; spent carbon drums or supersacks are consolidated, manifested, and shipped to final TSDF or reactivation kilns — keeping you fully compliant while minimizing freight.
Full loads instead of partial ones, which cuts freight without cutting compliance.
Turnkey programs from field sampling and isotherm modeling through equipment, start-up, scheduled change-out and quarterly reporting.
One accountable party for a number regulators will ask about for the next decade.
Turnkey Programs
Spectrum's turnkey packages make meeting the toughest air- and water-emission limits fast, predictable, and cost-controlled — whether you're battling “forever chemicals” in effluent or fugitive VOCs and H₂S at the tank farm.
Field sampling and isotherm modeling determine the exact carbon grade, bed depth, and vessel configuration.
ResultBed life forecasted to ±5%, eliminating over- or under-sizing.
Pre-engineered skids (50–1,000 gpm) and mobile trailers engineered for up to 1,200 gpm, plus vapor adsorbers to 10,000 cfm, arrive wet-tested with flow, pressure, and breakthrough sensors installed.
ResultRapid deployment — compliance achieved in 48 hours or less.
On-site specialists dial in flow, ΔP, and effluent quality; lab confirmation ensures PFAS < 10 ppt or ≥ 99% VOC removal.
ResultImmediate permit compliance and validated performance data.
Vacuum extraction, vessel inspection, and media reload completed in a single shift; spent carbon routed to rotary-kiln reactivation, cutting disposal by 90%.
ResultMinimal downtime, 40% lower lifecycle media cost, and circular sustainability.
Quarterly Carbon Application Reports with manifests, TCLP data, and performance curves — ready for CWA, RCRA, and emerging PFAS regulations.
ResultAudit-ready paperwork and peace of mind.
Program highlights
Pre-engineered skids and mobile trailers ship with flow, pressure and breakthrough sensors already installed, so deployment is a connection rather than a commissioning project.
Adsorbents
The media that protects the bed is as much a part of the program as the bed itself.
Hydrophobic, modified clays that strip emulsified hydrocarbons and surfactants from water, preventing oil-blind carbon beds.
High-capacity synthetic resins targeted for metals, ammonium, nitrates, and other emerging contaminants; can be regenerated or cartridge-swapped.
Bag, cartridge, and auto-backwash systems that intercept fines and scale, safeguarding downstream carbon and extending bed life.
Bottom line
Spectrum delivers a fully managed carbon solution — media, vessels, field crews, and documentation — so you stay focused on production while we keep your PFAS and VOC numbers exactly where regulators expect them: out of sight and out of mind.
Customers served
Refineries, chemical plants, terminals and mills run Spectrum carbon programs — most of them on recurring site contracts rather than one-off jobs.
A properly designed Spectrum activated carbon trailer system — one 20,000-lb trailer — can be engineered to reduce PFAS to below 10 parts per trillion at flows up to 1,200 gpm, subject to influent water quality, PFAS concentrations, carbon selection, EBCT and validated treatability testing. Sizing is confirmed against your own isotherm data before anything is quoted, and lab confirmation follows start-up.
Liquid phase runs from 50 gpm skids to trailer systems engineered for up to 1,200 gpm, with larger flows handled by paralleling trailers, and vapor phase from 250 cfm to 10,000 cfm. Vessels range from a 200 lb polishing pot for trace organics to full 20,000 lb ASME trailers.
Yes on both counts that matter. Steam reactivation cuts the volume you dispose of by up to 90% and costs roughly 40% less than virgin replacement carbon, and the returned media meets ASTM activity specs.
Skids and trailers ship with flow, pressure and breakthrough sensors installed, and a remote monitoring portal flags breakthrough before it happens rather than after the sample comes back.
Four buckets, one call
Water, Environmental, Carbon, and Equipment run as one team under one contract — so you brief a single crew and get an answer, not a referral.
